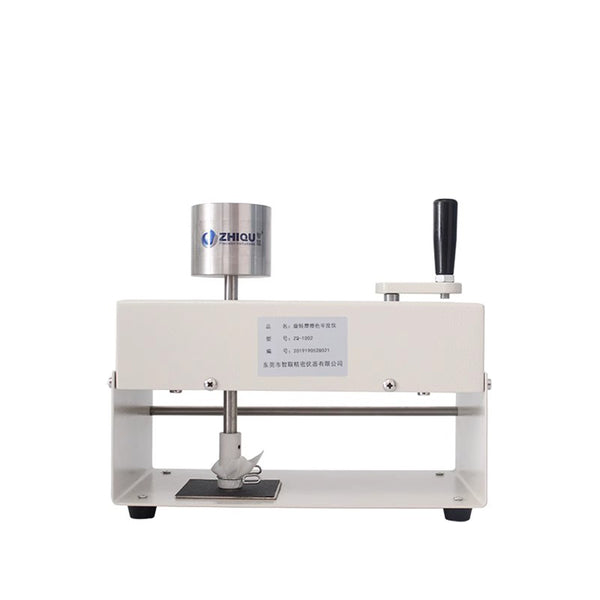

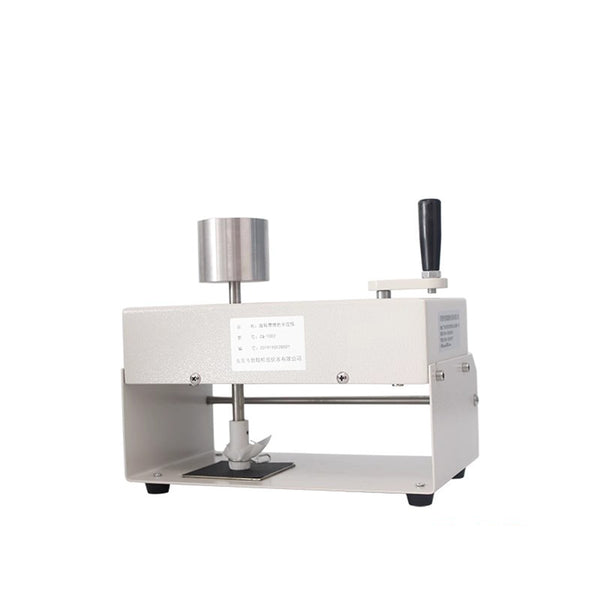

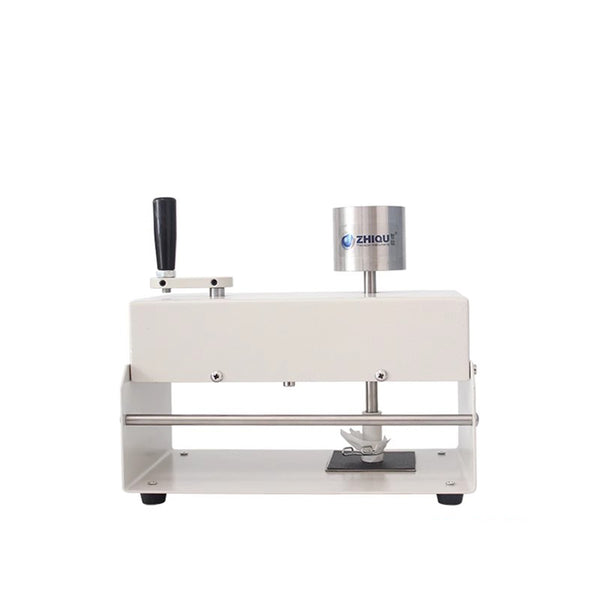

The AATCC rotary friction color fastness tester meets the AATCC 116 standard. Mainly detecting fabrics
Especially the dry/wet friction color fastness of printed fabrics, with a 16mm diameter friction head. Can provide 1134 grams of pressure, clockwise friction

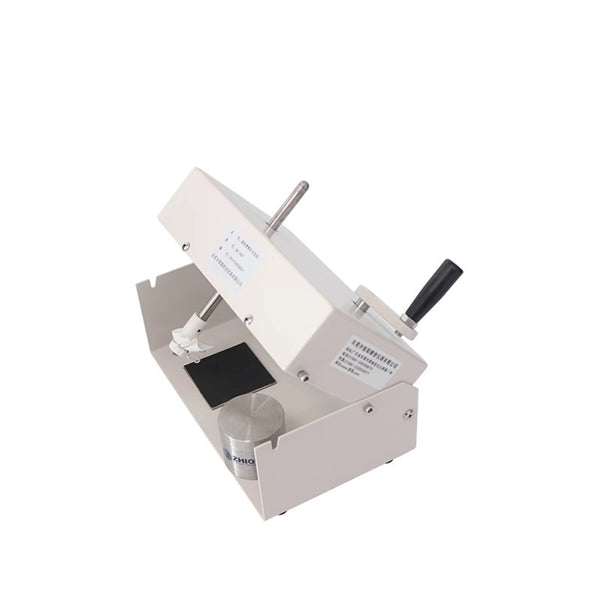

Friction counterclockwise after turning 1.125, while the operating handle only rotates in one direction. This instrument adopts a box design, and the upper part of the instrument can
Rotate backwards. When in use, rotate the upper part of the instrument backwards from the normal state, so that the vertical rod is in a horizontal position, and stabilize the sample
Place it at the bottom of the instrument, then return the upper part of the instrument to its original position, and let the lower end of the vertical rod wrapped in the test white cotton cloth make contact
To test the sample area, rotate the handle to drive the vertical rod to rotate, causing the white cotton cloth to rub against the sample. On the vertical pole
A weight is installed on the end, and a pressure of 1143g is applied to the sample. Observing the sample rubbing against a white cotton cloth under this pressure causing color sticking
Degree. This instrument can be used for both wet friction and dry friction methods.
II Main technical parameters:
Execution standard: AATCC 116
The machine includes: AATCC rotary friction color fastness tester+friction cloth (standard 200 pieces)
Sample bearing weight: 1143g
Friction head diameter: 16 ± 0.1mm
Machine size: 250 * 130 * 220
Machine weight: 2.3kg
