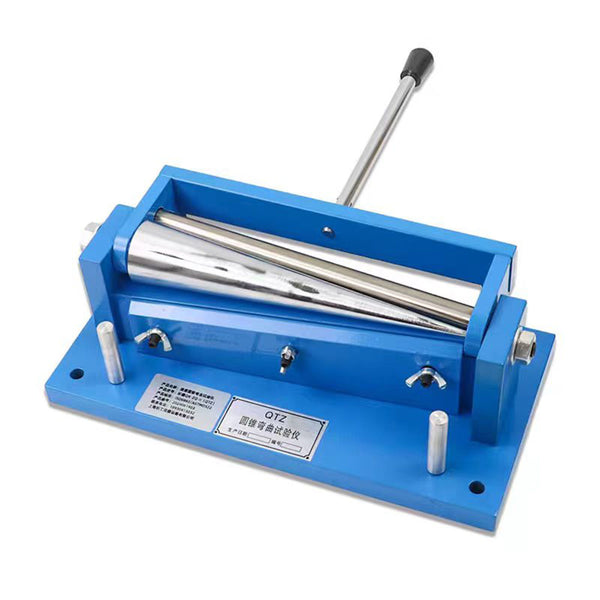

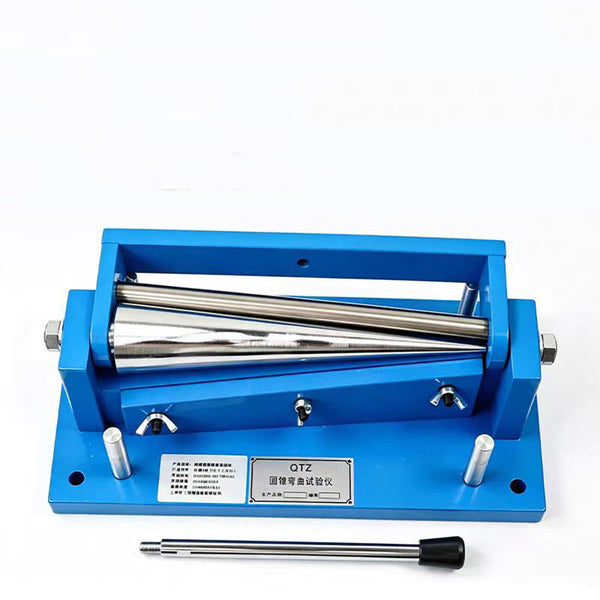

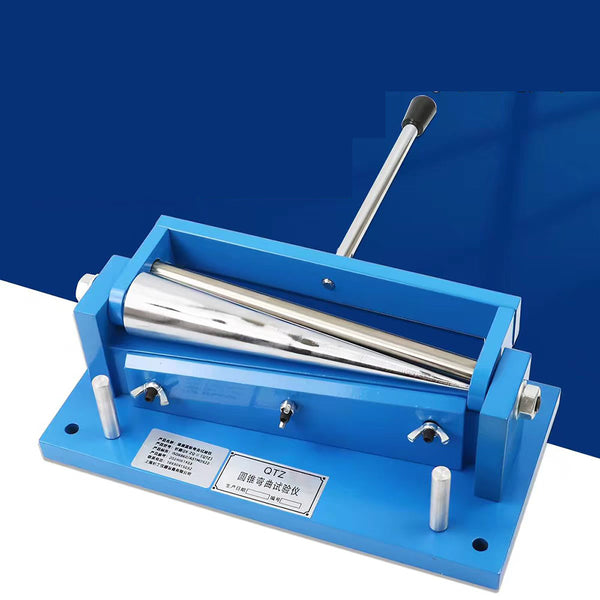

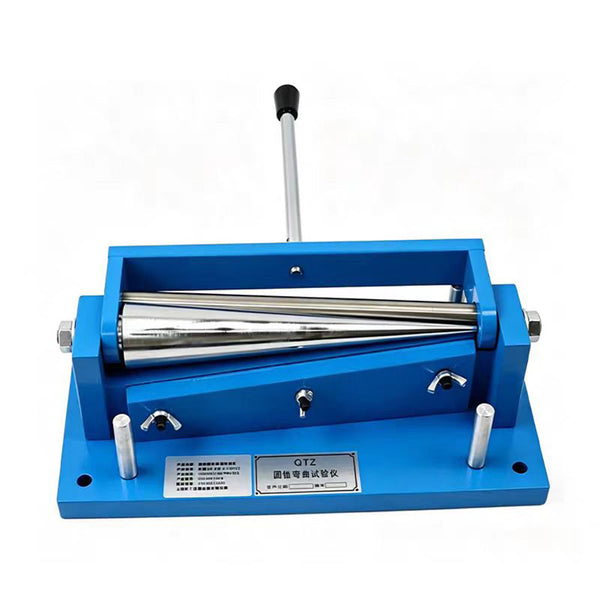

conical mandrel tester conical bend tester

sample size
Size 70 × 150mm, thickness not exceeding 0.8mm
Product Material
Anodized aluminum oxide and stainless steel
Product Dimensions
380x150x186mm
Product standard
GP9271-88 "Standard Test Panel for Paint and Varnish"
Film thickness
GB1764-79 "Film Thickness Tester" for determining thickness
Dry conditions
Test at 23+2C relative temperature of 50+5% for 16 hours
Test board processing
Test panel coating GB1727-79 "General preparation method for paint film"
Test length
203mm
Diameter range
3.1~38mm

net weight 7kg
