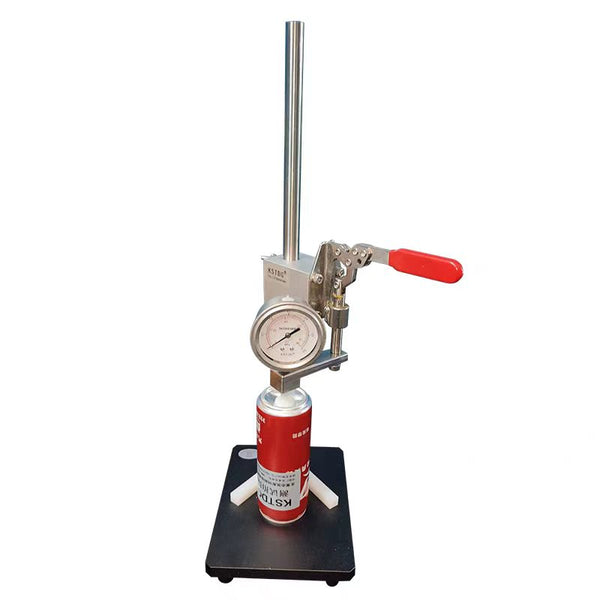

nstrument name: Carbon dioxide pressure measuring instrument inside the tank
Instrument model: KZY-301
Specification category: Desktop (with vent valve)
Display mode: pointer style
Test range: 0~0.6Mpa
Puncture needle: needle hole ≤ 0.1CM
Scale value: 0.001MPa
Product size: 200150 * 530mm
Packaging ruler 350 * 225 * 585mm
Packaging weight: 5.5KG
Production standards:
GB/T 10792-2008 Carbonated Beverage Soda
GB/T 4928-2008 Beer Analysis Method
Scope of application:
Test the pressure of carbonated beverages (soda) and beer
And carbon dioxide content (such as cola, beer, soda water)

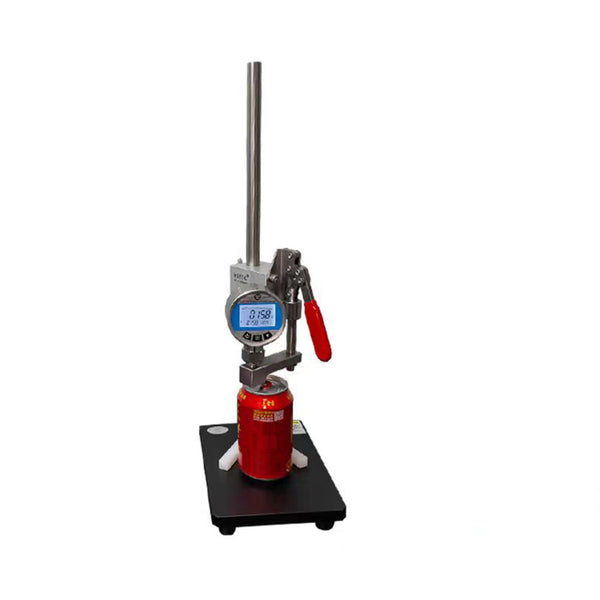

nstrument name: Carbon dioxide pressure measuring instrument inside the tank
Instrument model: KZY-300S
Specification category: Desktop (without vent valve)
Display mode: digital display
Test range: -0.1~1.0Mpa
Puncture needle: needle hole<0.1CM
Scale value: 0.001Mpa
Product size: 200 * 150 * 530mm
Packaging size: 250 * 225 * 585mm
Packaging weight: 5.6KG
Production standards:
GB/T 10792-2008 Carbonated Beverage Soda
GB/T 4928-2008 Beer Analysis Method
Scope of application:
Test the pressure inside the bottle/can and the bottleneck pressure;
Such as nitrogen filled products (such as Wang Laoji);
To test the carbon dioxide content of carbonated beverages and beer;
Please choose KZY-301 or KZY-301S
