Specification

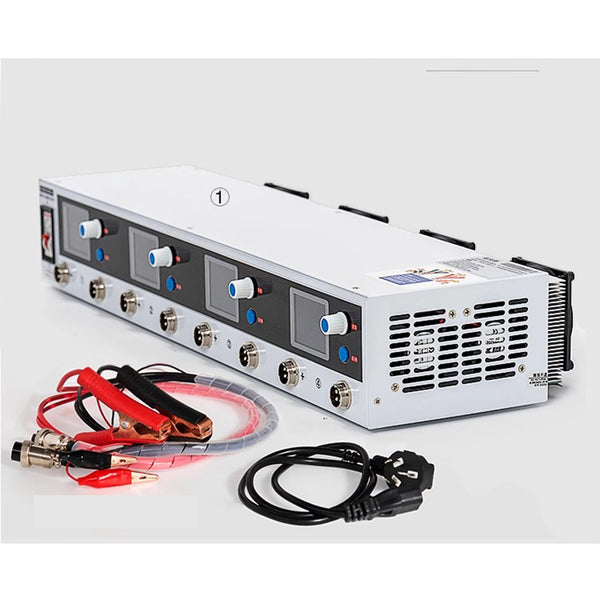

Name: 4-channel 50A Battery Capacity Tester
Voltage: 220V / 110V (optional)
Power: 1000W
Model: YPSDZ-0550-4
Menu: Chinese/English
Channels: 4 channels isolated and independent work
Charging range: 1-5V adjustable, 0.5-50A adjustable, constant current - constant voltage
Discharge range: 1-5V adjustable, 0.5-50A adjustable, constant current discharge (no spike pulse)
Working steps: charging-discharging-resting-cycling
Net weight: 6.4kg
Size: 620*105*230mm
Package Included:
Battery Capacity Tester*1pc
Power Adapter*1pc
Manual*1pc
Clamp*4pcs (Gift)
Extended functions:
4 channels can work in parallel after the same parameter setting,
realizing 200A charging and discharging.
Any 4 cells in a series battery pack can be tested without removing the connecting tabs.
Auxiliary function: equalization mode (discharge equalization)
Protection function: battery over-voltage / battery reverse
/ battery disconnection / high temperature alarm and protection
Accuracy: Voltage ±0.2% Current ±0.2% Allows calibration by authorized users

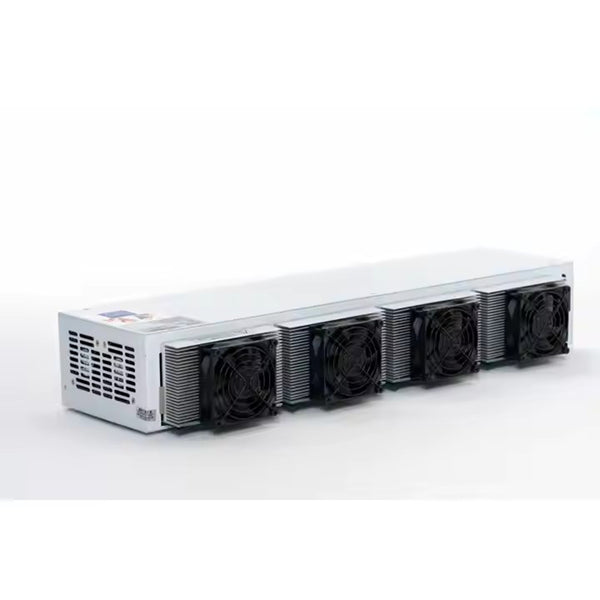

Heat dissipation: temperature-controlled fan 40 ℃ open, 83 ℃ protection
(please check and maintain the fan operation regularly)
Working environment: 0-40 ℃ ventilation, do not let the heat accumulated around the radiator,
if necessary, can be used to increase the air flow of electric fans blowing against the radiator
Applications:
It can be used for single cell dividing or battery pack rapid equalization;
Suitable for lithium ternary, lithium iron phosphate,
manganese/cobalt/lithium titanate polymer batteries
Please note:
1. This product can not test more than 5V battery;
2. Requires the clamp and battery lug contact area is large enough,
otherwise there will be a failure, and the clamp can not be repaired
3. During the upgrade process, the appearance will change slightly,
default to send the latest version, thank you~
